Size Chart
Size Part Number Recommended Top Depth Column Diameter
22"W x 27.75"H 2ATL-24 24"-28" 2" Dia.
26"W x 27.75"H 2ATL-30 30"-36" 2" Dia.
36"W x 27.75"H 2ATL-42 42"-46" 2" Dia.
42"W x 27.75"H 2ATL-48 46"-48" 2" Dia.

Base Size - W - Base Spread, H - Base Height

Recommended Top Depth - this is recommended depth sizes of table top for selected base.

Column Diameter - this is the diameter of base tubes.

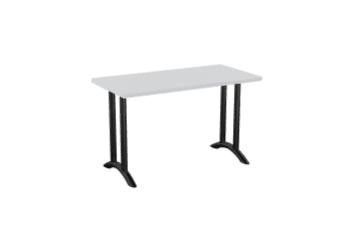

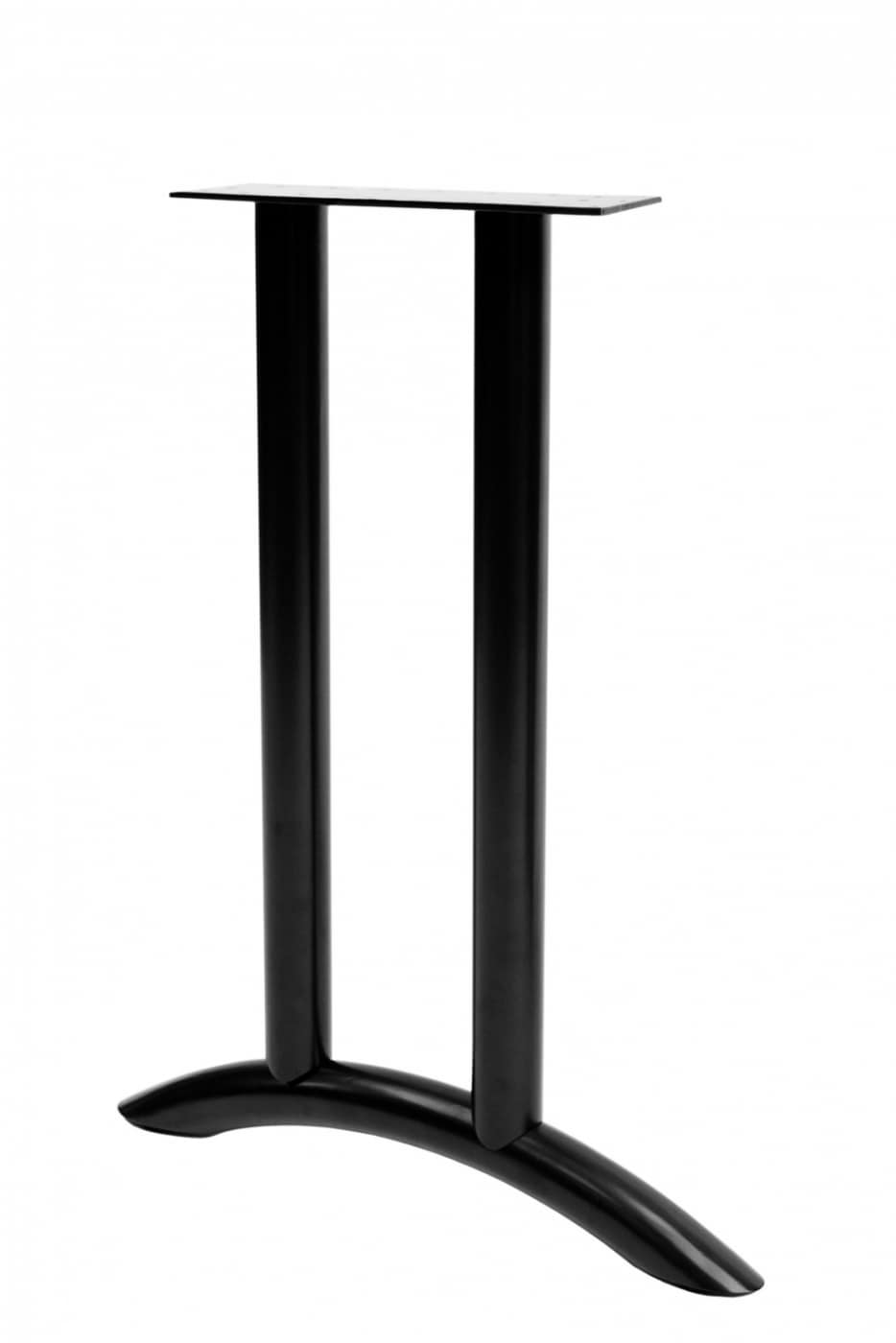

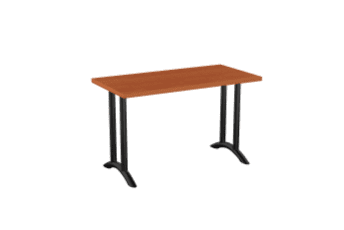

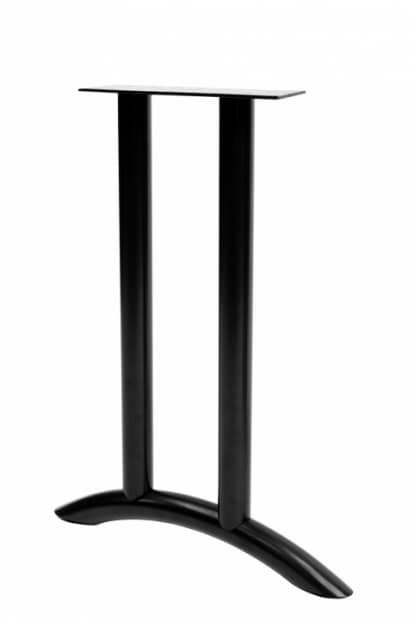

Dual Column Arched Foot Tubular Steel T-Leg, 2" Dia. Column, 27.75" Standard Height, Powder Coat

106.6
164
35% OFF


Part #: 2ATL-24
CartAdd to cart
Free Shipping
Shipping Options
FREE
Contact Us
Product Details

Available in various sizes and finishes, this base adds a nice flare to any table. This base is fabricated from the highest quality 14 gauge tubular steel. The columns and arched foot are 2” in diameter. All threaded inserts are welded for maximum strength. 36" and 42" spread bases can support up to 48" deep table.

Features
Column Diameter
2"
Unit height
27.75"
Mounting Plate
5" x 12" - 2ATL-24 and 2ATL-30; two welded 5"x 8"plates on 2ATL-42 and 2ATL-48. Require 8 #12 screws (not provided)
Leveler
1 3/8" diameter plastic
Finish
powder coat; black is stock color
Vertical load rating per leg
330 lbs. (200kg)
