Cast Iron X-Bases Table-Bases, 3" Dia. Column, 27.75" Standard Height

50% OFF
Self Leveling Glides

Part #: CI-2222X
CartAdd to cart Add to Favorites
Shipping Options

Enter your zip code first, please.

To see expedited options enter zip code

Product Details

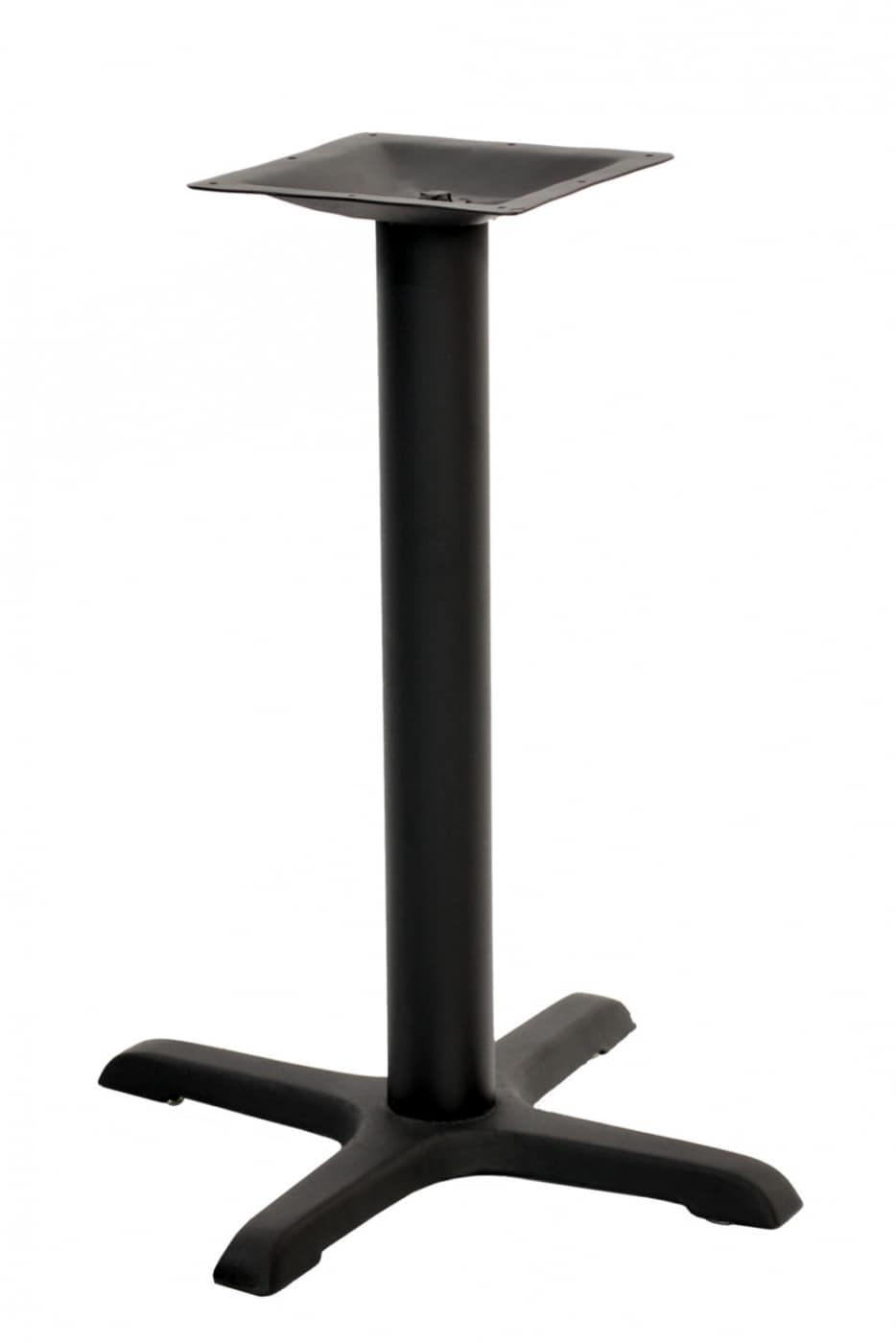

This Cast Iron X Base is perfect for commercial use such as restaurant, break room or cafeteria. The Cast Iron X Base is fabricated from 14 gauge tubular steel column and a heavy duty cast iron cross-shaped floor base. This table base features a 9.5" x 9.5" 2.5 mm pressed milled steel mounting plate with 3" diameter column, which provides maximum stability for your table. A base spread of  22"x22", 22"x30", 30"x30" and 33"x33" makes it  suitable for square or round table tops up to 36" in size.  The Cast Iron X Base is available in dining or bar heights. The leveling glides allow your table to stand on uneven floors. Milled steel threaded rod and nut are used for assembly.

"Quantity" represents total number of bases (if you want 2 bases update quantity to 2, if you want 4 bases update quantity to 4).

Unit Height
3" diameter

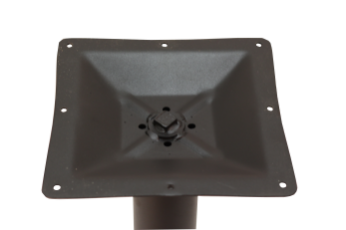

Welded Mounting Plate
9.5" x 9.5" 2.5 mm powder coated pressed milled steel
Base Spread22" x 22", 22" x 30", 30" x 30", 33" x 33"
Leveling Glides
1-1/8" diameter plastic
black sandtex
Method of Assembly
bolted construction
Floor plate and column are packaged in 2 boxes
Maximum Load Rating
300 pounds (per leg)

Customer REVIEWS

Write a customer review
Cast Iron X-Bases Table-Bases, 3" Dia. Column, 27.75" Standard Height


Your Comment*

/10,000 characters

May 14, 2019

I Receive my product fast and it was a pleasure dealing with Legs&Bases


Bases are warranted to the original purchaser for a period of 10 years from the date of delivery, under normal use, against manufacturing defects. We will repair or replace, at our discretion, any products that we determine to be defective as a result of faulty workmanship. In no event shall liability under this warranty exceed the original purchase price of the product determined to be defective. This warranty does not apply where product has been abused, mishandled or subjected to use other than that for which it was designed. For purposes of this warranty, normal wear to the product finish shall not be considered a defect. There are no other warranties expressed or implied.


Product returns are subject to the following conditions:

All returns must be accompanied by a Return Merchandise Authorization Form (RMA). The RMA must be requested within thirty (30) days of the original invoice date.

A 25% re-stocking fee and freight charges will be deducted from any refunds.

Products must be in new condition and packaged in the original cartons.

The following items are non-returnable and non-refundable:
- Table tops
- Power and Data Units
- Closeout tables and bases

We accept Visa, Master, American Express Credit Cards SSL Secured Website

We access all major credit cards.

We understand the risk and take seriously the credit cart processing. All transactions made with secured 128-bit encrypted connections. All your important information regarding your credit card is not being stored on our server and held only by your bank.

Customers who viewed this item also viewed
Maximum Available Amount Reached

You have reached maximum of available amount of this product

Added to Your Cart

Size Chart
Size Part Number Recommended Top Depth Column Diameter
22/22"W x 27.75"W CI-2222X ≤ 30” Rd. or ≤ 24” Sq. 3" Dia.
22/30"W x 27.75"W CI-2230X 24”-30”D x 36"-48"W 3" Dia.
30/30"W x 27.75"W CI-3030X ≤ 36” Rd. or ≤ 36” Sq. 3" Dia.

Base Size - W - Base Spread, H- Base Height

Recommended Top Depth - We recommend choosing base that are 2-4" shorter than the depth of your table top.

Column Diameter -The diameter of the base tube.

Self Leveling Glides

Self Leveling Glides
Option Features:
  • 1 3/8" nylon cap
  • Easy to install
  • Automatically stabilizes table
  • Requires no adjustment
  • Automatically adjusts 5/16" of any uneven surface
